نظام WDM شبه النشط
فئات
أطلقت شركة FIBERWDM حلاً شبه نشط لمحطة قاعدة WDM الأمامية، مما يوفر خيارًا فعالًا من حيث التكلفة للوصلات الأمامية المتقاربة 4G/5G.

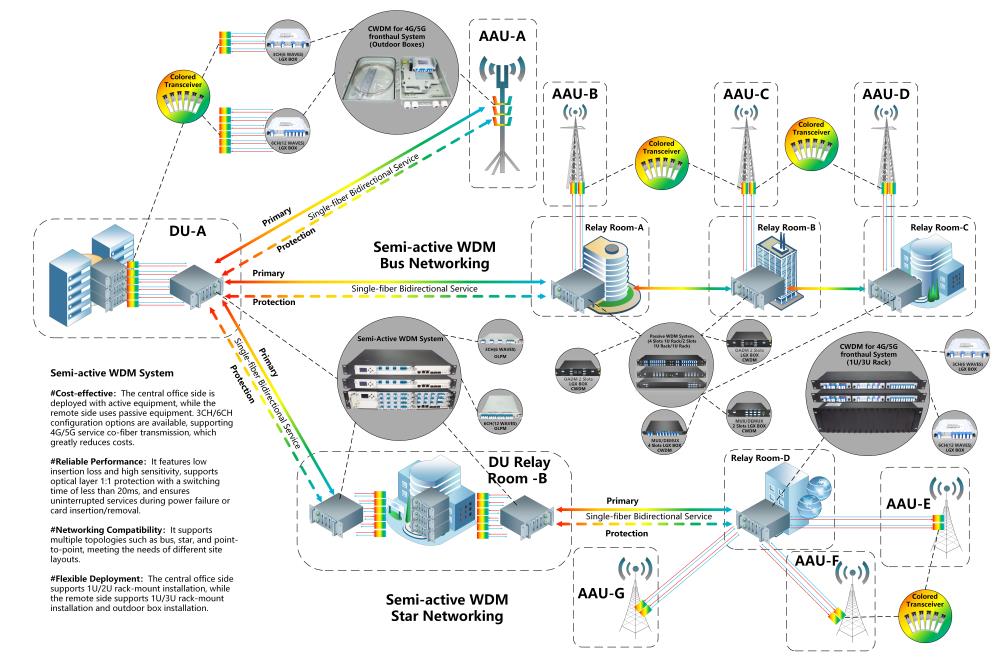

Adopting a hierarchical architecture with active central office and passive remote ends, this solution is equipped with an integrated management platform and features core capabilities including line protection and fast fault alarm, which ensures stable network operation. It supports multiple networking topologies such as bus-type and star-type, and can flexibly adapt to base station deployment scenarios with limited fiber resources.This solution enables operators to reduce fiber resource investment while balancing network reliability and operation and maintenance (O&M) efficiency.

Product Features

  1. Architecture: Active devices are deployed on the DU side, while passive multiplexers/demultiplexers are adopted on the AAU side, which balances the requirements of management control and low-cost deployment.
  2. Network Compatibility: Supports multiple topologies including bus, star and direct connection. It is suitable for C-RAN centralized deployment scenarios and can meet the requirements of different site layouts.
  3. WDM Configuration: Core support for CWDM technology, providing standard configurations of 3CH (6WAVES) and 6CH (12WAVES), which matches the mainstream fronthaul capacity requirements.
  4. Flexible Deployment: The central office side supports 1U/2U rack-mount installation, while the remote side supports 1U/3U rack-mount and outdoor box-type installation, adapting to both indoor and outdoor scenarios.
  5. Management & Control Capability: Equipped with OAM management functions, supporting SNMP/WEB/CLI/Telnet protocols, and enabling remote monitoring of alarms and optical power.
  6. Performance Compatibility: Supports mainstream 25G rate and is backward compatible with 10G rate. It is suitable for eCPRI/CPRI services and meets the transmission requirements of 5G fronthaul services.

Product Advantages

  1. Fiber Resource Saving: A single fiber can carry multiple channels of 4G/5G services, significantly reducing the consumption of fronthaul fiber cores.
  2. High Reliability: Features low insertion loss and high sensitivity, supports optical layer 1:1 protection with switching time less than 20ms, and ensures uninterrupted services during power failure or plugging/unplugging.
  3. Easy Operation & Maintenance: Realizes remote configuration and monitoring through network management system, with optical power detection, automatic fault switching and alarm functions for quick fault location.
  4. Environmental Adaptability: Remote devices comply with IP67 standard, suitable for deployment in various environments such as pole-mounting and outdoor fields.
Semi-Active WDM System
  • Semi-Active WDM System for 5G Fronthaul Transmission
    نظام WDM شبه النشط لنقل البيانات الأمامية لشبكات الجيل الخامس
    الميزات يدعم الوصول الشامل إلى خدمات النقل الأمامي اللاسلكي وغيرها من الخدمات، مع مراعاة خدمات النقل الأمامي اللاسلكي والخط الخاص وخدمات النطاق العريض المنزلي، ويعمل على زيادة قيمة شبكات النقل الأمامي إلى أقصى حد؛ لتحقيق أقصى استفادة من توفير الألياف الضوئية، يمكن لليف واحد نقل 9 قنوات من خدمات النقل الأمامي لشبكات الجيل الرابع والخامس CPRI/eCPRI؛ يكون الجانب المحلي نشطًا والطرف البعيد سلبيًا، وتُستخدم تقنية WDM لتوسيع القناة المادية لنقل البيانات بشفافية تامة، دون أي تأخير أو تشويش؛ يدعم هذا النظام وظيفة مراقبة الطاقة الضوئية لكل قناة، مما يسهل الصيانة وتحديد الأعطال؛ يدعم هذا النظام الحماية بنسبة 1:1 على مستوى الطبقة البصرية، ويقل زمن تبديل الحماية عن 20 مللي ثانية، مما يحسن موثوقية الشبكة؛ يمكن اختيار بطاقة وظيفة الحماية للطبقة البصرية وفقًا لسيناريو التطبيق، وهي تدعم وظائف التبديل السريع وإيقاف التشغيل/إيقاف التشغيل مع الاحتفاظ بالطاقة لضمان عدم تأثر عملية الخدمة في حالة انقطاع التيار الكهربائي؛ يدعم بروتوكول إدارة الشبكة البسيط (SNMP) وإدارة الشبكة عبر الويب وغيرها من واجهات المستخدم الرسومية؛ يدعم الجهاز الطرفي المحلي تيارًا مترددًا بجهد 220 فولت، ومصدر طاقة تيار مستمر بجهد -48 فولت اختياريًا، وحماية مدخل الطاقة 1+1؛ طريقة التركيب مرنة، حيث تدعم معدات المكتب المركزي التركيب على الرفوف والتركيب على الحائط، بينما تدعم المعدات البعيدة التركيب على الرفوف والأعمدة والتركيب على الحائط، مما يجعل عملية التركيب سهلة وسريعة. يلبي الجهاز الخارجي البعيد متطلبات معيار IP67 ويدعم التركيب على الأعمدة والجدران.

مجموع 1 الصفحات
